New GODWIN 12ft. Mason Dump Body Dump Body for sale in Morrisville, PA

ALL Truck Bodies / NEW Truck Bodies / NEW DUMP BODIES / NEW GODWIN DUMP BODIES / GODWIN 12ft. Mason Dump Body #13506

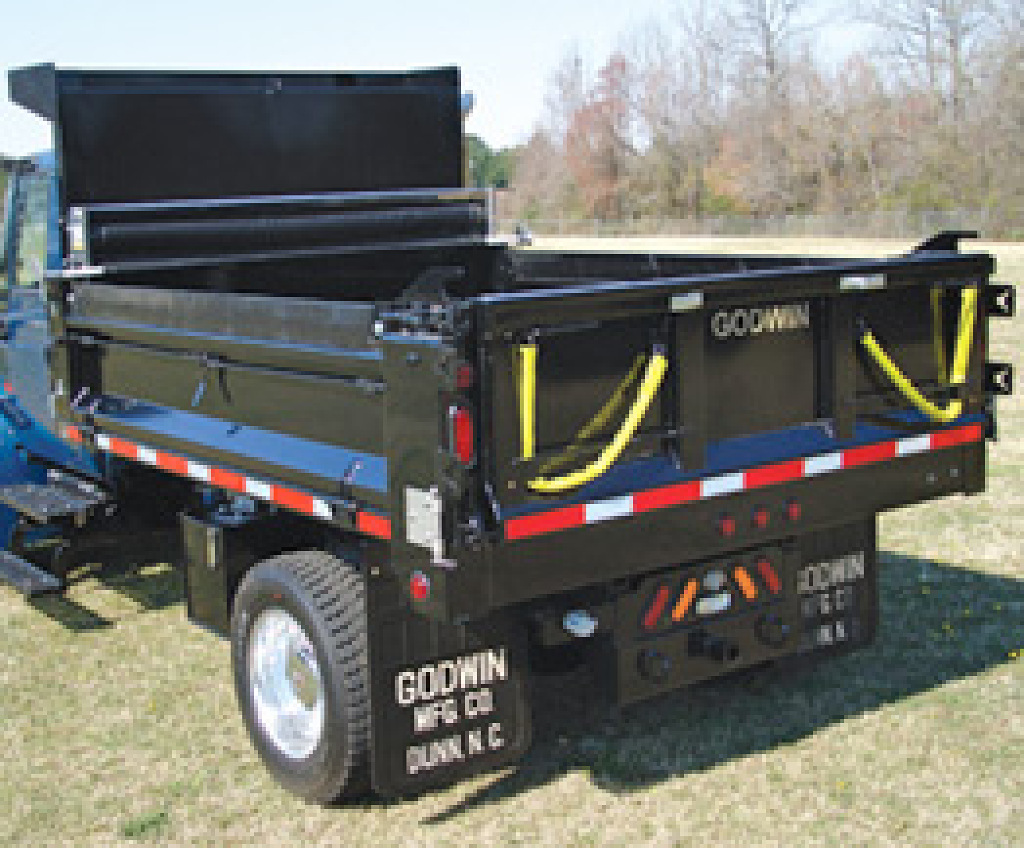

NEW GODWIN 12FT. MASON DUMP BODY DUMP BODY TRUCK BODY #13506
Description
12'LX96WX18"H MASON DUMP BODY W/FDS W CS GS620T HOIST This body is available in lengths of 8' to 11' in 1' increments. Inside width from side to side is 84". SIDES: One piece sides with no welded seams. 10 gauge A607 grade-50 high tensile steel with boxed top rail and fully welded boxed rear corner post. 6" side board gussets with full length rub rails, and box-type sidebraces. RUB RAILS: Full length 45 degree deflector panels are an integral part of the sides. FLOOR: 10 gauge -two piece high tensile steel floor with 2" floor to side radius. A607 grade-50 steel. FRONT WALL: 10 gauge high tensile A607 grade 50 steel. Full width integral inverted V-type horizontal bracing.TAILGATE: 3 Panel fully boxed 10 gauge high tensile A607 grade 50 steel with boxed horizontal reinforcements and sloping lower deflector. Tailgate is 6" higher than side.TAILGATE HARDWARE: Heavy duty: Standard upper hardware is offset cast steel hinge. Lower hook is cast steel: engages tailgate pin from top. Banjo eye keeps tailgate chain in position you select. LIGHTS &REFLECTORS: FMVSS 108 lights are standard, recessed for protection, rubber mounted and shock proof. UNDERSTRUCTURE: Completely jig built with 3" structural channel crossmembers on 12" centers and 5"structural channel longitudinal. Crossmembers are gusseted and welded to longitudinals. POPULAR OPTIONS: 36" cab shield, 8 gauge sides, 3/16" one piece floor, fold down 13" sides, 18" sides, quick release upper hardware, other options available.

Disclaimer: NOTICE: We make every effort to provide accurate information, but you must verify the information on this page before purchasing. Any MSRP price listed on new vehicles is a reference only. All sale prices include freight, dealer prep, any applicable factory rebates & equipment discount packages, coupons, bonus cash and TruckSmart Isuzu discount. Rebates may be in lieu of special financing. Not all customers may qualify. Manufacturers rebates are subject to change. Prior deals excluded. Exclusions may apply. Tax, license & document fees cost extra. TruckSmart Isuzu is not responsible for typographical errors.

Specifications
PricePrice not Provided
Stock #184U-FDS-CS
VINSH654GDF
